● 选用进口品牌低温压缩机,环保冷媒,采用先进制冷控制技术,高能效,低噪音,节能环保。
● 微电脑全功能控制,人机界面友好,操作简便快捷。
● 可选PLC模块控制,兼容通讯网线接口,实现远程控制及监控功能。
● 精密电子自动温度控制提供±1℃高精度恒温冷冻水介质。
● 具有电流过载、冷媒系统高低压、防冻、超温、相序、延时及水流等安全保护和报警指示功能。
● 液晶显示冷冻水进出口温度及设定温度,并具有显示查询故障告警功能。
● 冷冻水系统采用全不锈钢材质,保持水质清洁节能。
● 工业产品专用设计外型,美观简洁,品质非凡。
风冷工业低温冷水机(-5℃出水)技术参数
型号Model
|
RC-3AF
|
RC-5AF
|
RC-8AF
|
RC-10AF
|
RC-12AF
|
制冷量Cooling Capacity
|
kW
|
4.5
|
7.0
|
12.0
|
14.0
|
18.0
|
103kcal/h
|
3.87
|
6.02
|
10.32
|
12.04
|
15.48
|
电源Power Supply
|
V/ph/Hz
|
380/3/50
|
输入功率Input Power
|
kW
|
3.1
|
5.0
|
7.0
|
9.0
|
10.8
|
压缩机类型Compressor Type
|
全封闭高能效涡旋式Scroll
|
压缩机功率Compressor Power
|
kW
|
2.25
|
3.75
|
6.0
|
7.5
|
9.0
|
水泵功率Pump Power
|
kW
|
0.55
|
0.55
|
0.75
|
0.75
|
1.15
|
水泵扬程Pump Head
|
m
|
22.5
|
21.0
|
25.5
|
22.5
|
24.0
|
冷冻水流量Chilled Water Flow
|
m3/h
|
1.5
|
2.5
|
3.5
|
4.5
|
5.5
|
蒸发器形式Evaporator Type
|
水箱式/不锈钢板式Water Tank Type/Stainless Steel Plate Type
|
水箱容积Water Tank Volume
|
L
|
55
|
90
|
120
|
200
|
200
|
接管尺寸Pipe Size
|
DN
|
25
|
25
|
32
|
40
|
40
|
冷凝器Condenser
|
紫铜管套铝片高能效翅片式Coil
|
风量Air Volume
|
m3/h
|
4000
|
6800
|
9300
|
10600
|
12000
|
风机功率Fan power
|
W
|
150
|
360
|
500
|
500
|
500
|
冷媒Refrigerant
|
R22/R404
|
节流方式Throttle Mode
|
毛细管/膨胀阀Capillary Tube/Expansion Valve
|
保护装置Protector
|
高低压、过载、防冻、延时、超温、水流保护
Pressure,Overload,Anti-freeze,Delay,Over-temperature,Water Flow
|
噪音Noise Level
|
dB(A)
|
58
|
58
|
62
|
62
|
65
|
机组重量Weight
|
kg
|
135
|
175
|
300
|
430
|
550
|

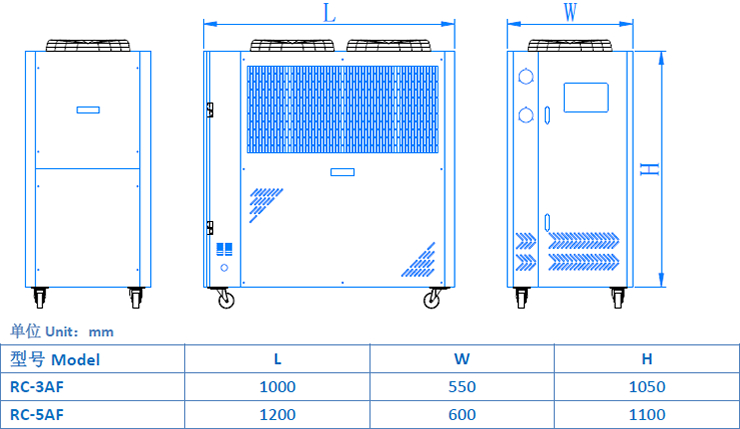

外形尺寸Dimensions
|
长L
|
mm
|
1000
|
1200
|
1450
|
1650
|
1650
|
宽W
|
mm
|
550
|
600
|
750
|
790
|
790
|
高H
|
mm
|
1120
|
1170
|
1300
|
1400
|
1400
|
型号Model
|
RC-15AF
|
RC-20AF
|
RC-25AF
|
RC-30AF
|
RC-40AF
|
制冷量Cooling Capacity
|
kW
|
22.0
|
32.0
|
36.5
|
45.5
|
54.0
|
103kcal/h
|
18.92
|
27.52
|
31.39
|
39.13
|
46.43
|
电源Power Supply
|
V/ph/Hz
|
380/3/50
|
输入功率Input Power
|
kW
|
15.2
|
20.1
|
22.2
|
29.4
|
35.5
|
压缩机类型Compressor Type
|
全封闭高能效涡旋式Scroll
|
压缩机功率Compressor Power
|
kW
|
11.25
|
15.0
|
18.75
|
22.5
|
30.0
|
水泵功率Pump Power
|
kW
|
2.25
|
2.25
|
2.25
|
2.25
|
3.75
|
水泵扬程Pump Head
|
m
|
27.5
|
27.0
|
26.5
|
25.5
|
28.5
|
冷冻水流量Chilled Water Flow
|
m3/h
|
7.5
|
9.0
|
10.5
|
13.0
|
18.0
|
蒸发器形式Evaporator Type
|
水箱式/不锈钢板式Water Tank Type/ Stainless Steel Plate Type
|
水箱容积Water Tank Volume
|
L
|
280
|
350
|
350
|
420
|
480
|
接管尺寸Pipe Size
|
DN
|
50
|
50
|
65
|
65
|
80
|
冷凝器Condenser
|
紫铜管套铝片高能效翅片式Coil
|
风量Air Volume
|
m3/h
|
16000
|
20000
|
24000
|
29000
|
39600
|
风机功率Fan Power
|
W
|
1200
|
1600
|
1700
|
2200
|
2700
|
冷媒Refrigerant
|
R22/R404
|
节流方式Throttle Mode
|
膨胀阀Expansion Valve
|
保护装置Protector
|
高低压、过载、防冻、延时、超温、水流保护
Pressure,Overload,Anti-freeze,Delay,Over-temperature,Water Flow
|
噪音Noise Level
|
dB(A)
|
65
|
65
|
68
|
68
|
68
|
机组重量Weight
|
kg
|
750
|
830
|
920
|
1100
|
1250
|

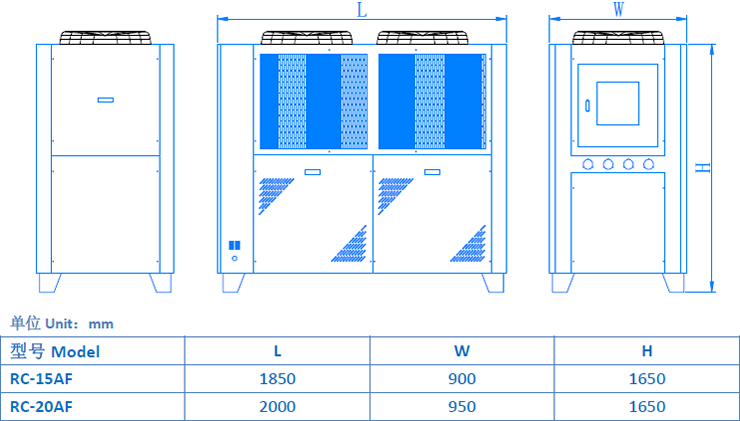

外形尺寸Dimensions
|
长L
|
mm
|
1850
|
2000
|
2150
|
2600
|
3300
|
宽W
|
mm
|
900
|
950
|
1000
|
1100
|
1500
|
高H
|
mm
|
1650
|
1650
|
1700
|
1700
|
1600
|
说明Directions:
1、以上制冷量基于环境温度35℃、进水温度0℃、出水温度–5℃。
The cooling capacity is based on a 35℃ ambient temperature, a 0℃ entering water temperature, a –5℃ leaving water temperature.
2、本公司保留因技术需要更改产品的权利,请关注公司网站或向相关业务人员咨询。
Design and specification are subject to change without prior notice.
3、产品是公司标准产品,如有–15℃、–20℃的出水要求,请与本公司联系定制。
All products are our standard products, please contact with us for special design.
风冷工业低温冷水机(-10℃出水)技术参数
型号Model
|
RC-3AF
|
RC-5AF
|
RC-8AF
|
RC-10AF
|
RC-12AF
|
制冷量Cooling Capacity
|
kW
|
3.0
|
4.7
|
7.9
|
11.0
|
13.5
|
103kcal/h
|
2.58
|
4.04
|
6.79
|
9.46
|
11.61
|
电源Power Supply
|
V/ph/Hz
|
380/3/50
|
输入功率Input Power
|
kW
|
3.1
|
5.0
|
7.0
|
9.5
|
10.8
|
压缩机类型Compressor Type
|
全封闭高能效涡旋式Scroll
|
压缩机功率Compressor Power
|
kW
|
2.25
|
3.75
|
6.0
|
7.5
|
9.0
|
水泵功率Pump Power
|
kW
|
0.55
|
0.75
|
0.75
|
1.15
|
1.15
|
水泵扬程Pump Head
|
m
|
22.5
|
22.0
|
20.0
|
22.5
|
20.0
|
冷冻水流量Chilled Water Flow
|
m3/h
|
0.89
|
1.5
|
2.0
|
2.5
|
3.2
|
蒸发器形式Evaporator Type
|
水箱式/不锈钢板式Water Tank Type/Stainless Steel Plate Type
|
水箱容积Water Tank Volume
|
L
|
55
|
90
|
120
|
200
|
200
|
接管尺寸Pipe Size
|
DN
|
25
|
25
|
32
|
40
|
40
|
冷凝器Condenser
|
紫铜管套铝片高能效翅片式Coil
|
风量Air Volume
|
m3/h
|
4000
|
6800
|
9300
|
10600
|
12000
|
风机功率Fan Power
|
W
|
150
|
360
|
500
|
500
|
500
|
冷媒Refrigerant
|
R22/R404
|
节流方式Throttle Mode
|
毛细管/膨胀阀Capillary Tube/Expansion Valve
|
保护装置Protector
|
高低压、过载、防冻、延时、超温、水流保护
Pressure,Overload,Anti-freeze,Delay,Over-temperature,Water Flow
|
噪音Noise Level
|
dB(A)
|
58
|
58
|
62
|
62
|
65
|
机组重量Weight
|
kg
|
135
|
175
|
300
|
430
|
550
|
外形尺寸Dimensions
|
长L
|
mm
|
1000
|
1200
|
1450
|
1650
|
1650
|
宽W
|
mm
|
550
|
600
|
750
|
790
|
790
|
高H
|
mm
|
1120
|
1170
|
1300
|
1400
|
1400
|
型号Model
|
RC-15AF
|
RC-20AF
|
RC-25AF
|
RC-30AF
|
RC-40AF
|
制冷量Cooling Capacity
|
kW
|
16.5
|
22.0
|
24.5
|
27.0
|
35.0
|
103kcal/h
|
14.19
|
18.92
|
20.64
|
23.22
|
30.1
|
电源Power Supply
|
V/ph/Hz
|
380/3/50
|
输入功率Input Power
|
kW
|
15.2
|
20.1
|
22.2
|
29.4
|
35.5
|
压缩机类型Compressor Type
|
全封闭高能效涡旋式Scroll
|
压缩机功率Compressor Power
|
kW
|
11.25
|
15.0
|
18.75
|
22.5
|
30.0
|
水泵功率Pump Power
|
kW
|
2.25
|
2.25
|
2.25
|
3.75
|
3.75
|
水泵扬程Pump Head
|
m
|
25.5
|
22.0
|
20.0
|
25.5
|
20.0
|
冷冻水流量Chilled Water Flow
|
m3/h
|
4.5
|
6.0
|
7.5
|
9.0
|
11.0
|
蒸发器形式Evaporator Type
|
水箱式/不锈钢板式Water Tank Type/Stainless Steel Plate Type
|
水箱容积Water Tank Volume
|
L
|
280
|
350
|
350
|
420
|
480
|
接管尺寸Pipe Size
|
DN
|
50
|
50
|
65
|
65
|
80
|
冷凝器Condenser
|
紫铜管套铝片高能效翅片式Coil
|
风量Air Volume
|
m3/h
|
16000
|
20000
|
24000
|
29000
|
39600
|
风机功率Fan Power
|
W
|
1200
|
1600
|
1700
|
2200
|
2700
|
冷媒Refrigerant
|
R22/R404
|
节流方式Throttle Mode
|
膨胀阀Expansion Valve
|
保护装置Protector
|
高低压、过载、防冻、延时、超温、水流保护
Pressure,Overload,Anti-freeze,Delay,Over-temperature,Water Flow
|
噪音Noise Level
|
dB(A)
|
65
|
65
|
68
|
68
|
68
|
机组重量Weight
|
kg
|
750
|
830
|
920
|
1100
|
1250
|
外形尺寸Dimensions
|
长L
|
mm
|
1850
|
2000
|
2150
|
2600
|
3300
|
宽W
|
mm
|
900
|
950
|
1000
|
1100
|
1500
|
高H
|
mm
|
1650
|
1650
|
1700
|
1700
|
1600
|
说明Directions:
1、以上制冷量基于环境温度35℃、进水温度–5℃、出水温度–10℃。
The cooling capacity is based on a 35℃ ambient temperature, a –5℃ entering water temperature and a –10℃ leaving water temperature.
2、本公司保留因技术需要更改产品的权利,请关注公司网站或向相关业务人员咨询。
Design and specification are subject to change without prior notice.
3、产品是公司标准产品,–15℃、–20℃出水要求,请与本公司联系定制。
All products are our standard products, please contact with us for special
|
