● 选用进口品牌低温压缩机,环保冷媒,采用先进制冷控制技术,高能效,低噪音,节能环保。
● 微电脑全功能控制,人机界面友好,操作简便快捷。
● 可选PLC模块控制,兼容通讯网线接口,实现远程控制及监控功能。
● 精密电子自动温度控制提供±1℃高精度恒温冷冻水介质。
● 具有电流过载、冷媒系统高低压、防冻、超温、相序、延时及水流等安全保护和报警指示功能。
● 液晶显示冷冻水进出口温充及设定温度,具有显示故障告警功能。
● 冷冻水系统采用全不锈钢材质,保持水质清洁节能。
● 工业产品专用设计外型,美观简洁,品质非凡。

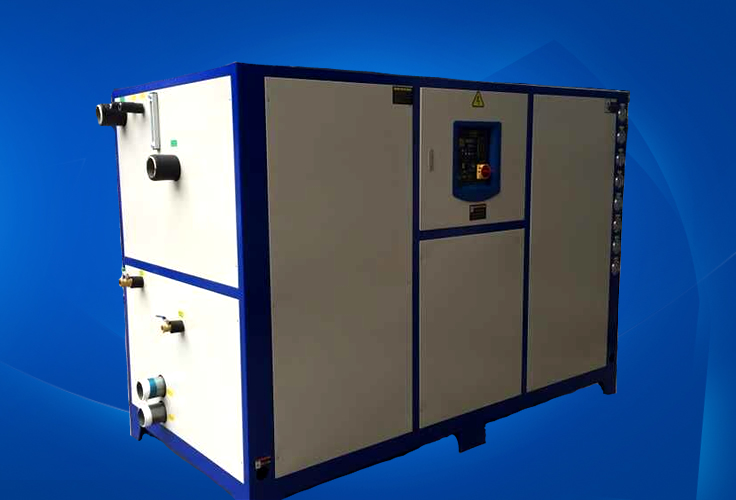

水冷工业低温冷水机(-5℃出水)技术参数
型号Model
|
RC-3WF
|
RC-5WF
|
RC-8WF
|
RC-10WF
|
RC-12WF
|
制冷量Cooling Capacity
|
kW
|
5.2
|
7.8
|
13.5
|
16.0
|
20.5
|
103kcal/h
|
4.47
|
6.71
|
11.61
|
13.76
|
17.63
|
电源Power Supply
|
V/ph/Hz
|
380/3/50
|
输入功率Input Power
|
kW
|
3.0
|
4.5
|
6.75
|
8.6
|
10.0
|
压缩机类型Compressor Type
|
全封闭高能效涡旋式Scroll
|
压缩机功率Compressor Power
|
kW
|
2.25
|
3.75
|
6.0
|
7.5
|
9.0
|
水泵功率Pump Power
|
kW
|
0.55
|
0.55
|
0.75
|
0.75
|
1.15
|
水泵扬程Pump Head
|
m
|
22.5
|
21.0
|
25.5
|
22.5
|
24.0
|
冷冻水流量Chilled Water Flow
|
m3/h
|
1.5
|
2.5
|
3.5
|
4.5
|
5.5
|
冷却水流量Cooling Water Flow
|
m3/h
|
1.8
|
3.0
|
4.2
|
5.4
|
6.6
|
蒸发器形式Evaporator Type
|
水箱式/壳管式/不锈钢板式
Water Tank Type/Shell and Tube Type/Stainless Steel Plate Type
|
水箱容积Water Tank Volume
|
L
|
55
|
90
|
120
|
200
|
200
|
接管尺寸Pipe Size
|
DN
|
25
|
25
|
32
|
40
|
40
|
冷凝器Condenser
|
壳管式/套管式Shell and Tube Type/Double-pipe Type
|
冷媒Refrigerant
|
R22/R404
|
节流方式Throttle Mode
|
毛细管/膨胀阀Capillary Tube/Expansion Valve
|
保护装置Protector
|
高低压、过载、防冻、延时、超温、水流保护
Pressure,Overload,Anti-freeze,Delay,Over-temperature,Water Flow
|
噪音Noise Level
|
dB(A)
|
52
|
52
|
58
|
58
|
60
|
机组重量Weight
|
kg
|
130
|
155
|
280
|
400
|
520
|

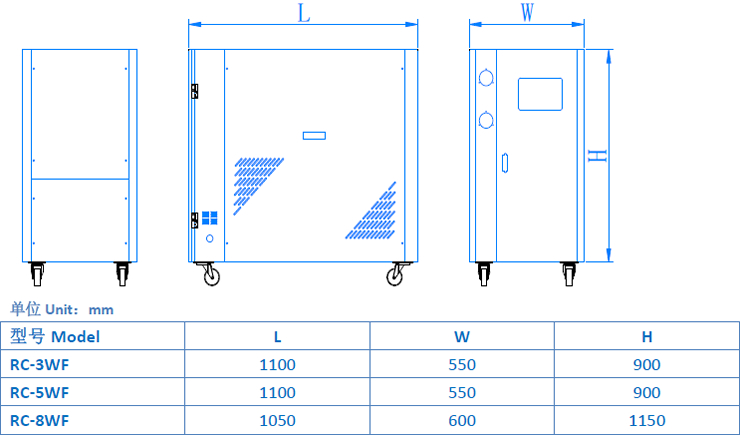

外形尺寸Dimensions
|
长L
|
mm
|
1100
|
1100
|
1050
|
1200
|
1200
|
宽W
|
mm
|
550
|
550
|
600
|
700
|
700
|
高H
|
mm
|
1000
|
1000
|
1250
|
1300
|
1300
|
型号Model
|
RC-15WF
|
RC-20WF
|
RC-25WF
|
RC-30WF
|
RC-40WF
|
制冷量Cooling Capacity
|
kW
|
25.0
|
34.5
|
40.5
|
48.0
|
58.0
|
103kcal/h
|
21.5
|
29.67
|
34.83
|
41.28
|
49.88
|
电源Power Supply
|
V/ph/Hz
|
380/3/50
|
输入功率Input Power
|
kW
|
12.75
|
17.5
|
21.0
|
26.5
|
33.0
|
压缩机类型Compressor Type
|
全封闭高能效涡旋式Scroll
|
压缩机功率Compressor Power
|
kW
|
11.25
|
15.0
|
18.75
|
22.5
|
30.0
|
水泵功率Pump Power
|
kW
|
2.25
|
2.25
|
2.25
|
2.25
|
3.75
|
水泵扬程Pump Head
|
m
|
27.5
|
27.0
|
26.5
|
25.5
|
28.5
|
冷冻水流量Chilled Water Flow
|
m3/h
|
7.5
|
9.0
|
10.5
|
13.0
|
18.0
|
冷却水流量Cooling Water Flow
|
m3/h
|
9.8
|
11.7
|
13.6
|
17.0
|
23.4
|
蒸发器形式Evaporator Type
|
水箱式/壳管式/不锈钢板式
Water Tank Type/Shell and Tube Type/Stainless Steel Plate Type
|
水箱容积Water Tank Volume
|
L
|
280
|
350
|
350
|
420
|
480
|
接管尺寸Pipe Size
|
DN
|
50
|
50
|
65
|
65
|
80
|
冷凝器Condenser
|
壳管式/套管式Shell and Tube Type/Double-pipe Type
|
冷媒Refrigerant
|
R22/R404
|
节流方式Throttle Mode
|
膨胀阀Expansion valve
|
保护装置Protector
|
高低压、过载、防冻、延时、超温、水流保护
Pressure,Overload,Anti-freeze,Delay,Over-temperature,Water Flow
|
噪音Noise Level
|
dB(A)
|
62
|
62
|
65
|
65
|
65
|
机组重量Weight
|
kg
|
650
|
800
|
880
|
1000
|
1150
|

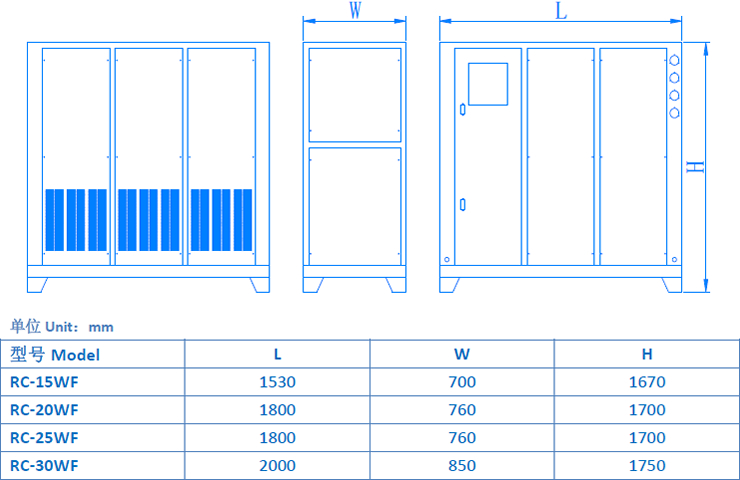

外形尺寸Dimensions
|
长L
|
mm
|
1530
|
1800
|
1800
|
2000
|
2100
|
宽W
|
mm
|
700
|
760
|
760
|
850
|
950
|
高H
|
mm
|
1670
|
1700
|
1700
|
1750
|
1800
|
说明Directions:
1、以上制冷量基于冷却进水35℃、出水温度30℃、冷冻进水0℃、出水温度–5℃。
The cooling capacity is based on a 35℃ entering cooling water temperature, a 30℃ leaving cooling water temperature, a 0℃ entering chilled water temperature and a –5℃ leaving chilled water temperature.
2、本公司保留因技术需要更改产品的权利,请关注公司网站或向相关业务人员咨询。
Design and specification are subject to change without prior notice.
3、产品是公司标准产品,–15℃、–20℃出水要求,请与本公司联系定制。
All products are our standard products, please contact with us for special design.
水冷工业低温冷水机(-10℃出水)技术参数
型号Model
|
RC-3WF
|
RC-5WF
|
RC-8WF
|
RC-10WF
|
RC-12WF
|
制冷量Cooling Capacity
|
kW
|
4.0
|
6.2
|
10.5
|
13.5
|
17.0
|
103kcal/h
|
3.44
|
5.33
|
9.03
|
11.61
|
14.63
|
电源Power Supply
|
V/ph/Hz
|
380/3/50
|
输入功率Input Power
|
kW
|
3.0
|
4.5
|
6.75
|
8.6
|
10.0
|
压缩机类型Compressor Type
|
全封闭高能效涡旋式Scroll
|
压缩机功率Compressor Power
|
kW
|
2.25
|
3.75
|
6.0
|
7.5
|
9.0
|
水泵功率Pump Power
|
kW
|
0.55
|
0.55
|
0.75
|
0.75
|
1.15
|
水泵扬程Pump Head
|
m
|
22.5
|
21.0
|
25.5
|
22.5
|
24.0
|
冷冻水流量Chilled Water Flow
|
m3/h
|
0.89
|
1.5
|
2.0
|
2.5
|
3.2
|
冷却水流量Cooling Water Flow
|
m3/h
|
1.1
|
1.8
|
2.4
|
3.0
|
3.9
|
蒸发器形式Evaporator Type
|
水箱式/壳管式/不锈钢板式
Water Tank Type/Shell and Tube Type/Stainless Steel Plate Type
|
水箱容积Water Tank Volume
|
L
|
55
|
90
|
120
|
200
|
200
|
接管尺寸Pipe Size
|
DN
|
25
|
25
|
32
|
40
|
40
|
冷凝器Condenser
|
壳管式/套管式Shell and Tube Type/Double-pipe Type
|
冷媒Refrigerant
|
R22/R404
|
节流方式Throttle Mode
|
毛细管/膨胀阀Capillary Tube/Expansion valve
|
保护装置Protector
|
高低压、过载、防冻、延时、超温、水流保护
Pressure,Overload,Anti-freeze,Delay,Over-temperature,Water Flow
|
噪音Noise Level
|
dB(A)
|
52
|
52
|
58
|
58
|
60
|
机组重量Weight
|
kg
|
130
|
155
|
280
|
400
|
520
|
外形尺寸Dimensions
|
长L
|
mm
|
1100
|
1100
|
1050
|
1200
|
1200
|
宽W
|
mm
|
550
|
550
|
600
|
700
|
700
|
高H
|
mm
|
1000
|
1000
|
1250
|
1300
|
1300
|
型号Model
|
RC-15WF
|
RC-20WF
|
RC-25WF
|
RC-30WF
|
RC-40WF
|
制冷量Cooling Capacity
|
kW
|
21.5
|
27.0
|
32.0
|
35.5
|
42.0
|
103kcal/h
|
18.49
|
23.22
|
27.52
|
30.53
|
36.12
|
电源Power Supply
|
V/ph/Hz
|
380/3/50
|
输入功率Input Power
|
kW
|
12.75
|
17.5
|
21.0
|
26.5
|
33.0
|
压缩机类型Compressor Type
|
全封闭高能效涡旋式Scroll
|
压缩机功率Compressor Power
|
kW
|
11.25
|
15.0
|
18.75
|
22.5
|
30.0
|
水泵功率Pump Power
|
kW
|
2.25
|
2.25
|
2.25
|
2.25
|
3.75
|
水泵扬程Pump Head
|
m
|
27.5
|
27.0
|
26.5
|
25.5
|
28.5
|
冷冻水流量Chilled Water Flow
|
m3/h
|
4.5
|
6.0
|
7.5
|
9.0
|
11.0
|
冷却水流量Cooling Water Flow
|
m3/h
|
5.9
|
7.8
|
9.8
|
11.7
|
14.3
|
蒸发器形式Evaporator Type
|
水箱式/壳管式/不锈钢板式
Water Tank Type/Shell and Tube Type/Stainless Steel Plate Type
|
水箱容积Water Tank Volume
|
L
|
280
|
350
|
350
|
420
|
480
|
接管尺寸Pipe Size
|
DN
|
50
|
50
|
65
|
65
|
80
|
冷凝器Condenser
|
壳管式/套管式Shell and Tube Type/Double-pipe Type
|
冷媒Refrigerant
|
R22/R404
|
节流方式Throttle Mode
|
膨胀阀Expansion valve
|
保护装置Protector
|
高低压、过载、防冻、延时、超温、水流保护
Pressure,Overload,Anti-freeze,Delay,Over-temperature,Water Flow
|
噪音Noise Level
|
dB(A)
|
62
|
62
|
65
|
65
|
65
|
机组重量Weight
|
kg
|
650
|
800
|
880
|
1000
|
1150
|
外形尺寸Dimensions
|
长L
|
mm
|
1530
|
1800
|
1800
|
2000
|
2100
|
宽W
|
mm
|
700
|
760
|
760
|
850
|
950
|
高H
|
mm
|
1670
|
1700
|
1700
|
1750
|
1800
|
说明Directions:
1、以上制冷量基于冷却进水30℃、出水温度35℃、冷冻进水–5℃、出水温度–10℃。
The cooling capacity is based on a 30℃ entering cooling water temperature, a 35℃ leaving cooling water temperature, a -5℃ entering chilled water temperature and a -10℃ leaving chilled water temperature.
2、本公司保留因技术需要更改产品的权利,请关注公司网站或向相关业务人员咨询。
Design and specification are subject to change without prior notice.
3、产品是公司标准产品,–15℃、–20℃出水要求,请与本公司联系定制。
All products are our standard products, please contact with us for special design.
|
